For years, smart home enthusiasts have faced a frustrating trade-off: convenience versus privacy. We want the magic of walking into a room and saying, “I’m home,” only to have the lights dim, the thermostat adjust, and our favorite playlist begin. However, achieving this level of sophisticated automation usually requires sending our most private voice data and home habits to the cloud servers of tech giants. If the internet goes down, your “smart” home often becomes a collection of expensive, unresponsive plastic. The dream of a truly autonomous, private, and resilient home has remained just out of reach for many, relegated to those with the technical prowess to script complex logic from scratch.

This paradigm is shifting rapidly thanks to the intersection of two powerful technologies: Home Assistant, the gold standard for open-source home automation, and Ollama, a tool that makes running Large Language Models (LLMs) locally as easy as running a standard desktop application. By integrating Ollama with Home Assistant, you are no longer limited to rigid “if-this-then-that” rules. You can now give your home a “brain” capable of understanding natural language, reasoning through complex requests, and maintaining 100% of your data within your four walls. This guide explores how to bridge these technologies to create a next-generation smart home that is private, powerful, and truly intelligent.

The Evolution of the “Local Brain”: Why Ollama Changes Everything

Historically, adding intelligence to Home Assistant meant relying on integrations with OpenAI’s GPT-4 or Google’s Gemini. While effective, these solutions introduce latency, costs per request, and the aforementioned privacy concerns. Ollama changes the game by providing a streamlined framework to run models like Llama 3, Mistral, and Phi-3 directly on your own hardware. It manages the complexities of model weights, quantization, and GPU acceleration, allowing you to serve a powerful API endpoint that Home Assistant can communicate with locally.

The significance of “local” cannot be overstated. When your home’s intelligence lives on a local server (like a repurposed gaming PC, a Mac Studio, or even a high-end Raspberry Pi 5 with an NPU), the response time drops significantly. More importantly, your home remains functional during an internet outage. Using Ollama, Home Assistant can send a prompt like, “The user just arrived home, it’s raining outside, and the living room is dark. What should I do?” and receive a structured, logical response based on your specific devices and preferences—all without a single packet of data leaving your local network.

Setting Up the Foundation: Preparing Home Assistant and Ollama

Before the two systems can talk to each other, you need a robust host for Ollama. While Home Assistant often runs on low-power hardware like a Raspberry Pi 4, Ollama requires a bit more “muscle” to provide snappy responses. Ideally, you should run Ollama on a machine with a dedicated GPU (NVIDIA is preferred due to CUDA support) or an Apple Silicon Mac. If you are running Home Assistant OS, the easiest way to bridge the two is by installing Ollama on a separate, more powerful machine on the same network, though there are add-ons available for those running Home Assistant on generic x86 hardware.

Once Ollama is installed, the first step is to pull a model. For home automation tasks, Llama 3 (8B) or Mistral are excellent choices as they balance performance with resource usage. You can do this via the terminal with a simple command: ollama run llama3. Once the model is downloaded and running, Ollama hosts a local API (usually on port 11434). This API is the bridge that Home Assistant will use to send commands and receive “intelligent” instructions.

Connecting the Dots: The Integration Process

To integrate the two, you will typically use the Ollama Conversation integration available via HACS (Home Assistant Community Store) or the built-in AI Conversation frameworks being introduced in recent Home Assistant updates. You will need to provide the IP address of your Ollama server and specify the model name you wish to use. Once connected, Home Assistant gains a new “Conversation Agent” that you can select as your default voice or text assistant.

Transforming Automation with Natural Language Intent

The true power of integrating Ollama with Home Assistant lies in Intent Handling. Traditional voice assistants require specific phrases: “Turn on the kitchen light.” If you say, “It’s a bit dark in here where I’m cooking,” a standard assistant might fail. An LLM powered by Ollama, however, understands context. By exposing your Home Assistant entities (lights, switches, climate) to the Ollama agent, it can map vague human desires to specific device actions.

For example, consider a “Movie Night” scenario. Instead of building a complex script for every possible variation, you can tell your Ollama-powered assistant, “We’re about to watch a horror movie, make it spooky.” The LLM can be prompted with a list of your lights and their capabilities. It might decide to dim the living room lights to 10%, turn them deep red, close the smart blinds, and turn on the soundbar. Because the LLM understands the “vibe” of a horror movie, it creates an automation on the fly based on the tools it has available.

Advanced Use Case: Context-Aware Home Monitoring

Beyond simple commands, local AI can act as a sophisticated monitor for your home’s telemetry. Home Assistant collects a staggering amount of data—energy usage, temperature fluctuations, occupancy patterns, and security events. By feeding summarized versions of this data into Ollama, you can ask your home complex questions about its own state. This moves the smart home from reactive to proactive.

Imagine asking, “Why was my electricity bill so high yesterday?” The Ollama integration can analyze the history of your energy sensors and reply: “The HVAC ran for 8 hours because the back door was left ajar between 2:00 PM and 6:00 PM, and the dryer was run during peak pricing hours.” This level of insight previously required manual log diving or expensive proprietary energy monitors. With local AI, your home becomes an expert on itself, providing actionable advice to improve your comfort and efficiency.

• Predictive Maintenance: AI can notice if a fridge compressor is running longer than usual, signaling a potential failure.
• Security Summaries: “Did anything unusual happen while I was at work?” The AI can summarize motion events and camera detections.
• Dynamic Scheduling: Asking the house to “Prepare the guest room for my parents’ arrival on Friday” could automatically set the guest climate and unlock the guest door at a specific time.

Configuring the “System Prompt” for Smart Home Success

The “System Prompt” is the set of instructions that tells the AI how to behave. When using Ollama with Home Assistant, this prompt is your most powerful tool. You don’t want the AI to behave like a generic chatbot; you want it to behave like a Home Butler. A well-crafted system prompt should include a list of available areas, a list of device names, and strict instructions on the output format (such as JSON) if you want it to trigger specific services.

A sample snippet of a system prompt might look like this: “You are a helpful home automation assistant. You have access to the Living Room, Kitchen, and Bedroom. You can control lights and thermostats. When a user asks to change the environment, identify the correct entity and respond with the required action. Be concise and do not hallucinate devices that do not exist.” By refining this prompt, you reduce errors and ensure that when you say “Goodnight,” the AI doesn’t just say “Sweet dreams,” but actually checks if the front door is locked and the oven is off.

Practical Guidance: Hardware and Software Requirements

To get a smooth experience with around 2-3 seconds of latency, you need to consider your hardware carefully. While you can run Ollama on a CPU, the “tokens per second” (speed of generation) will be slow, making voice interaction feel clunky. Here is a quick breakdown of recommended setups:

1. The Budget Enthusiast: A Raspberry Pi 5 (8GB) or a used “Tiny-Mini-Micro” PC (like a Lenovo ThinkCentre) with 16GB RAM. This will run small models like Phi-3 or TinyLlama adequately for text-based triggers.
2. The Performance Balanced: An Apple Mac Mini with an M2 or M3 chip. Apple’s Unified Memory is incredibly efficient for LLMs, and Ollama is highly optimized for macOS.
3. The Power User: A dedicated server or PC with an NVIDIA RTX 3060 (12GB VRAM) or better. This allows you to run Llama 3 8B with near-instantaneous responses, even when handling complex, multi-step logic.

On the software side, ensure you have HACS installed on your Home Assistant instance. Look for the “Ollama Conversation” integration. This integration acts as a translator, taking your voice/text input, sending it to your Ollama server, and then passing the resulting command back into Home Assistant’s “Intent” system.

Common Mistakes and Security Considerations

While the prospect of a “Jarvis-like” home is exciting, there are several pitfalls to avoid. The most common mistake is over-exposure. Do not give the AI control over security-critical entities like “Disarm Alarm” or “Open Garage Door” via simple voice commands unless you have secondary authentication. AI can be prone to “hallucinations”—where it confidently asserts it has done something it hasn’t, or interprets a request in an unexpected way. Always maintain a “human-in-the-loop” for high-stakes actions.

Another consideration is Resource Contention. If you run Ollama on the same machine as your Plex server or Home Assistant, a heavy AI task could cause your smart home’s basic functions to lag. It is often better to keep your AI “inference engine” on a separate piece of hardware. Lastly, remember that while the data is local, the hardware itself still needs to be secured. Ensure your Ollama API port is not exposed to the open internet; it should only be accessible within your local VLAN or via a secure VPN like Tailscale.

Conclusion: The Future of the Sovereign Smart Home

Integrating Ollama with Home Assistant represents a major milestone in the journey toward the “Sovereign Smart Home.” We are moving away from centralized, cloud-dependent ecosystems toward a model where intelligence is a local utility, much like electricity or water. By bringing Large Language Models into the home automation space, we enable a level of nuance and flexibility that was previously impossible. Your home can finally understand intent rather than just commands, providing a more natural and helpful living environment.

If you are ready to take the next step, start small. Install Ollama on your main computer, download the Llama 3 model, and connect it to Home Assistant using a basic conversation agent. Experiment with asking your home questions about its state or asking it to perform simple multi-device tasks. As you gain confidence, you can move toward dedicated hardware and more complex system prompts. The goal isn’t just to have a home that talks—it’s to have a home that truly understands you, while keeping your private life exactly where it belongs: inside your home.

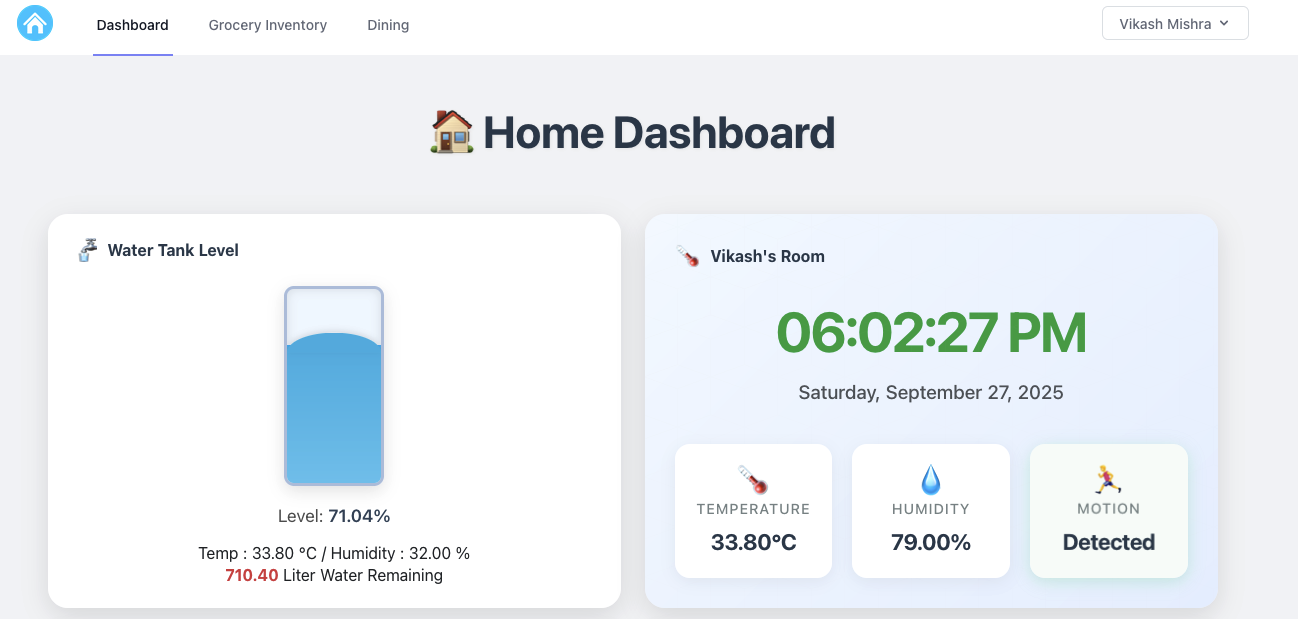

For many makers, the transition from building standalone Arduino gadgets to creating a unified smart home system can feel like hitting a brick wall. You might have a perfectly functioning ESP32-based weather station or a custom motorized blind controller sitting on your workbench, but the moment you try to integrate it into a cohesive dashboard alongside your commercial smart bulbs and thermostats, things get complicated. The “walled garden” approach of many consumer smart home hubs often leaves hobbyist hardware in the dark. This creates a frustrating gap between the creativity of the maker movement and the practical utility of modern home automation.

This is where Home Assistant becomes a game-changer. Unlike proprietary hubs, Home Assistant is built on the philosophy of local control and infinite extensibility, making it the perfect partner for the ESP32. Whether you are looking to monitor the soil moisture of your indoor plants, automate your garage door using a relay, or create a custom LED matrix display, the ESP32 provides the processing power and Wi-Fi connectivity needed to bridge the physical world with your digital home. In this guide, we will explore the methodologies for integrating custom hardware into Home Assistant, focusing on the tools and protocols that turn a bare microcontroller into a first-class citizen of your smart home ecosystem.

Choosing Your Integration Method: ESPHome vs. MQTT

When you decide to connect an ESP32 to Home Assistant, you generally face two primary paths: ESPHome or MQTT (Message Queuing Telemetry Transport). ESPHome is an “infrastructure-as-code” system designed specifically for Home Assistant. It allows you to write simple configuration files in YAML, which are then compiled into custom firmware and flashed to your device. The primary advantage of ESPHome is its native integration; once a device is flashed, Home Assistant discovers it automatically, and every sensor or switch you’ve defined appears as a ready-to-use entity.

On the other hand, MQTT is the industry-standard protocol for the Internet of Things. It uses a “pub/sub” (publish/subscribe) model where the ESP32 sends data to a broker (like Mosquitto), and Home Assistant listens for that data. MQTT is the better choice if you are already comfortable writing C++ code in the Arduino IDE or VS Code/PlatformIO, or if you need to integrate your device with multiple systems beyond Home Assistant. While ESPHome is faster for 90% of maker projects, MQTT offers the ultimate flexibility for complex logic that doesn’t fit into a standard YAML configuration.

Ultimately, the choice depends on your goals. If you want to spend more time on the hardware and less on the firmware, ESPHome is the gold standard. If you enjoy the granular control of manual coding and want your device to be platform-agnostic, MQTT is your best bet. Many advanced makers use both: ESPHome for simple sensors and actuators, and MQTT for high-performance projects like real-time audio processing or complex robotics.

The Power of ESPHome for Custom Sensors

ESPHome has revolutionized the way makers use the ESP32. Instead of spending hours debugging Wi-Fi reconnection logic or API calls, you focus on the hardware. ESPHome supports hundreds of sensors out of the box, from simple DHT22 temperature sensors to complex VL53L1X time-of-flight distance sensors. The beauty of this system lies in its component-based architecture. You don’t “write” code; you “configure” components. For example, to add a temperature sensor, you simply specify the pin it’s connected to and the update interval.

One of the most powerful features for makers is the Template Sensor. This allows you to perform calculations on the device itself before the data ever reaches Home Assistant. Imagine you are measuring the water level in a cylindrical tank using an ultrasonic sensor. Instead of sending the raw distance in centimeters, you can use a lambda function within ESPHome to calculate the remaining volume in liters. This offloads processing from your main server and ensures that your dashboard displays meaningful information immediately.

Furthermore, ESPHome handles Over-the-Air (OTA) updates seamlessly. Once you’ve flashed the initial firmware via USB, every subsequent change to your sensor configuration can be pushed over Wi-Fi. This is vital for projects where the ESP32 is installed in an inaccessible location, like inside a wall cavity or high up on a weather pole. The integration also includes a “Logger” component, which lets you view real-time serial logs over the network, making remote troubleshooting significantly easier.

Handling Actuators: Relays, PWM, and Beyond

While sensors allow Home Assistant to “feel” the world, actuators allow it to “change” it. Integrating actuators like relays, transistors, and servos with an ESP32 requires a solid understanding of GPIO (General Purpose Input/Output) management. In Home Assistant, these are typically exposed as “Switches,” “Lights,” or “Covers.” A common application is using a relay module to control “dumb” devices like a garage door opener or a traditional floor lamp. In ESPHome, a basic relay is defined as a switch platform, which instantly gives you a toggle button in your Home Assistant UI.

For more nuanced control, such as dimming LED strips or controlling fan speeds, the ESP32’s Pulse Width Modulation (PWM) capabilities are essential. By using the ledc platform in ESPHome, you can transform a simple digital pin into a dimmable light entity. This allows for smooth transitions and the ability to set specific brightness percentages. When dealing with RGB or RGBW strips, the ESP32 can manage the complex timing required for protocols like WS2812B (NeoPixels), enabling vibrant, synchronized lighting effects that can be triggered by Home Assistant automations.

It is important to remember the electrical limitations of the ESP32. The GPIO pins can only provide a small amount of current (usually around 12mA to 40mA depending on the pin and configuration). Never attempt to drive a motor or a large relay directly from an ESP32 pin. Always use a transistor, a MOSFET, or a dedicated relay driver circuit. Using an optocoupler is also a highly recommended practice to isolate the sensitive microcontroller from the higher voltages used by your actuators, preventing accidental “magic smoke” during a power surge.

Wiring and Power Considerations for Long-Term Stability

A common pitfall for makers is building a project that works perfectly on the breadboard but fails once deployed. Stability in a smart home environment depends heavily on power management and signal integrity. The ESP32 is notoriously power-hungry during Wi-Fi transmission, often drawing spikes of up to 250mA. If you are powering your project via a cheap USB wall wart or a long, thin cable, you may experience “brownouts” where the chip resets unexpectedly. Using a high-quality 5V power supply and adding a 100µF to 1000µF capacitor across the VCC and GND pins can smooth out these spikes and ensure consistent operation.

When it comes to wiring sensors, the distance between the ESP32 and the sensor matters. I2C sensors, which are very common in the maker world, are designed for short-distance communication (usually under 30cm). If you need to place a sensor further away, consider using the OneWire protocol (like the DS18B20 temperature probe) or converting the signal to an analog voltage. Additionally, ensure that you are using the correct pull-up resistors for your data lines. While the ESP32 has internal pull-ups, they are often too weak for reliable communication over longer wires or in electrically “noisy” environments like a kitchen or garage.

Lastly, consider the physical enclosure. A bare PCB is vulnerable to dust, moisture, and accidental shorts. For makers, 3D printing a custom case is the go-to solution, but even a standard plastic project box will suffice. Ensure there is adequate ventilation if your ESP32 is running intensive tasks or if you are using components that generate heat, such as voltage regulators or high-power LEDs. A stable environment is the difference between a gadget and a reliable piece of home infrastructure.

Example Code: A Multi-Sensor ESPHome Configuration

To give you a practical starting point, here is a simplified YAML configuration for an ESP32 that includes a temperature/humidity sensor and a relay switch. This code would be used within the ESPHome dashboard in Home Assistant.

esphome:
  name: workshop_controller
  platform: ESP32
  board: esp32dev

wifi:
  ssid: "Your_WiFi_Name"
  password: "Your_WiFi_Password"

# Enable Home Assistant API
api:
  password: "Your_API_Password"

ota:
  password: "Your_OTA_Password"

sensor:
  - platform: dht
    pin: 4
    temperature:
      name: "Workshop Temperature"
    humidity:
      name: "Workshop Humidity"
    update_interval: 60s

switch:
  - platform: gpio
    pin: 5
    name: "Workshop Bench Light"
    inverted: false

This configuration demonstrates how easily different functionalities are grouped. The sensor block handles data coming in, and the switch block handles commands going out. Once uploaded, Home Assistant will notify you that a new device has been found. After clicking “Configure,” you will have three new entities: two sensors and one switch, all ready to be added to your Lovelace dashboard or used in complex automations.

Advanced Logic: Bringing Automation to the Edge

One of the most sophisticated ways to use ESP32s in Home Assistant is by implementing Local Control Logic (also known as “Edge Computing”). Usually, we think of Home Assistant as the “brain” that makes decisions. For example: “If the temperature sensor reads 30°C, turn on the fan relay.” However, if your Wi-Fi goes down or your Home Assistant server reboots, that automation fails. By moving the logic to the ESP32 itself using ESPHome’s on_value or automation triggers, you ensure the device remains functional even when disconnected from the network.

Consider a sump pump monitor. You want Home Assistant to log the data, but you need the pump to turn on if the water reaches a certain level, regardless of whether the server is online. You can program the ESP32 to monitor a float switch and trigger the relay locally. In the YAML, this looks like a script or a direct trigger tied to the sensor component. This hybrid approach—using Home Assistant for logging and UI while keeping critical safety logic on the ESP32—is the hallmark of a professionally designed maker system.

Another advanced technique involves Deep Sleep. For battery-powered sensors, the ESP32 can be configured to wake up, read a sensor, connect to Wi-Fi, send the data to Home Assistant, and immediately go back to sleep. This can extend battery life from days to months. Home Assistant handles this gracefully by showing the last known value and indicating when the device was last seen, allowing you to build a wireless sensor network without running power cables to every corner of your property.

Common Mistakes and Considerations

When integrating custom hardware, it’s easy to overlook small details that cause big headaches later. Here are the most common mistakes makers encounter:

• Ignoring Voltage Levels: The ESP32 is a 3.3V device. Connecting a 5V sensor output directly to an ESP32 GPIO pin can permanently damage the chip. Always use a logic level shifter or a simple voltage divider circuit when interfacing with 5V components.
• Using Restricted GPIO Pins: Not all pins on an ESP32 are created equal. Some pins (strapping pins like GPIO 0, 2, 5, 12, and 15) affect how the chip boots. Using these for certain sensors can prevent the device from starting up after a power cycle. Always consult a “pinout reference” for your specific ESP32 board.
• Blocking Code in MQTT: If you are using the Arduino IDE with MQTT, avoid using the delay() function. This freezes the processor and can cause the MQTT connection to drop. Use non-blocking timers (like millis()) instead.
• Security Neglect: Many makers leave their ESPHome API or MQTT broker without a password. While it’s “just a light switch,” an unsecured IoT device can be a gateway into your home network. Always use strong, unique passwords for your device’s API and OTA components.

Additionally, consider the User Experience for others in your household. A custom sensor that requires a specific sequence of button presses to operate is a “gadget,” not a smart home feature. Ensure that your integrations are intuitive and that manual overrides (like a physical button on the wall) still work even if the smart system is offline. This “Guest Mode” or “Partner Approval Factor” is crucial for long-term success in home automation.

Conclusion: The Path to a Truly Bespoke Smart Home

Integrating custom ESP32 sensors and actuators into Home Assistant represents the pinnacle of the maker experience. It moves you away from the limitations of off-the-shelf products and gives you the freedom to solve specific problems in your home with precision. Whether you are using the streamlined power of ESPHome or the flexible, code-heavy approach of MQTT, the result is the same: a home that adapts to your needs rather than forcing you to adapt to its software.

The journey from a single blinking LED to a fully automated home can be steep, but the modular nature of these tools allows you to grow one project at a time. Start small—perhaps with a single temperature sensor in your home office—and gradually expand into more complex territory like motorized actuators or edge-based logic. The skills you gain in hardware interfacing, network protocols, and YAML configuration will not only improve your home but also deepen your understanding of the modern IoT landscape.

Your next step should be to choose a single pain point in your home—a closet light that never gets turned off, or a plant that always dies from dehydration—and build a dedicated ESP32 solution for it. Download the ESPHome dashboard, grab a development board, and start bridging the gap between your workbench and your living room today. The only limit is your imagination and your willingness to experiment.

You’ve just finished your latest masterpiece: an ESP32-based weather station that monitors soil moisture and uploads data to an AWS dashboard. It works perfectly, but there is a glaring problem. It is currently a chaotic “rat’s nest” of jumper wires, a breadboard that loses connection if you sneeze too hard, and a power supply that relies on a precarious USB cable. While breadboards are the undisputed kings of rapid prototyping, they are temporary by design. The spring contacts inside a breadboard loosen over time, leading to intermittent signal failures that are nightmares to debug, and the parasitic capacitance between the rows can interfere with high-speed signals or sensitive analog readings.

Transitioning from a prototype to a custom Printed Circuit Board (PCB) is the rite of passage for any serious IoT developer. It isn’t just about making the project look “pro”—though a sleek black solder mask certainly helps—it’s about reliability, scalability, and physical durability. A custom PCB allows you to shrink your project’s footprint, integrate proper power regulation, and ensure that your ESP32 can withstand the environment it was intended for, whether that’s a dusty garage or a humid greenhouse. In this guide, we will walk through the technical journey of professionalizing your ESP32 project, covering everything from schematic design to the final assembly of your first custom board.

The Architecture of a Robust ESP32 Schematic

The first step in leaving the breadboard behind is creating a formal schematic. In the world of ESP32 development, this means moving beyond just connecting pins. You must design a supporting ecosystem for the microcontroller. The ESP32 is a power-hungry chip, especially when the Wi-Fi or Bluetooth radios are active. During transmission, the chip can draw current spikes of up to 500mA. On a breadboard, these spikes often cause voltage brownouts because of the high resistance of thin jumper wires. Your PCB schematic must include a dedicated 3.3V Low-Dropout (LDO) regulator (like the AP2112 or AMS1117) or a buck converter, paired with a minimum of 10µF and 100nF decoupling capacitors placed as close to the ESP32 power pins as possible.

Beyond power, you need to handle the “strapping pins” correctly. The ESP32 uses specific GPIOs (typically GPIO 0, 2, 5, 12, and 15) to determine its booting mode. If you accidentally pull GPIO 0 HIGH during startup, the chip won’t enter the flash mode. A professional design includes pull-up or pull-down resistors on these critical pins to ensure the device boots reliably every time. Additionally, integrating an auto-reset circuit using two NPN transistors (the standard DTR/RTS circuit) allows you to upload code via USB without having to manually hold down “Boot” and “Reset” buttons—a small detail that vastly improves the development experience.

Choosing the Right Form Factor: Module vs. Chip

When moving to a PCB, you have a choice: do you use a ready-made ESP32 development board (like the DevKitV1) as a “daughterboard,” or do you solder the ESP32 module (like the ESP32-WROOM-32) directly to your PCB? For your first few projects, designing a PCB with headers to plug in a full development board is a safe and effective strategy. It simplifies the power circuit and avoids the need for fine-pitch Surface Mount Device (SMD) soldering. However, this approach is bulky and adds unnecessary cost if you plan to build multiple units.

The professional approach is to use the ESP32-WROOM or WROVER modules. These modules are pre-certified by the FCC/CE, meaning the complex RF (Radio Frequency) circuitry and the antenna are already optimized and shielded. Soldering these onto your PCB requires a bit of practice with a fine-tip iron or a hot-air station, but it results in a much more compact and integrated product. If you choose this route, you must pay close attention to the antenna keep-out zone. You cannot place copper traces, ground planes, or components directly under or near the PCB antenna of the module, as this will significantly degrade your Wi-Fi range.

PCB Layout Essentials: Signal Integrity and Noise

Once your schematic is ready, you move to the PCB layout. This is where the physical placement of components dictates the performance of your IoT device. For the ESP32, the most critical rule is Ground Planes. You should almost always use a two-layer board with the bottom layer acting as a solid ground plane. This provides a low-impedance path for return currents and helps shield your circuit from electromagnetic interference (EMI). Without a solid ground plane, your ESP32’s Wi-Fi radio can introduce “noise” into your sensitive analog sensors, leading to jumpy data readings.

Trace width is another vital consideration. While signal traces can be thin (typically 6-10 mils), your power traces (3.3V and GND) need to be wider to handle the current spikes mentioned earlier. Use a trace width calculator to ensure your power lines can handle at least 1A of current without significant voltage drop. Furthermore, keep your high-speed signals—like SPI or I2C—as short as possible. If you are using an external crystal or high-speed sensors, keep those traces away from the noisy power lines and the antenna to prevent cross-talk.

The Jump to Surface Mount Components (SMD)

While Through-Hole components (the ones with long legs) are easy to use on breadboards, they are bulky and increasingly rare for modern sensors. Professionalizing your ESP32 project usually involves a shift to Surface Mount Technology (SMT). This can be intimidating, but it is the key to miniaturization. Start with larger SMD sizes like 0805 (2.0mm x 1.25mm) or 0603. These are manageable with a standard soldering iron and some tweezers. Moving to SMD components also allows you to place parts on both sides of the PCB, though for your first version, keeping everything on the top side is highly recommended to simplify assembly.

One of the biggest advantages of SMD is the reduction in “stray inductance.” Because the components don’t have long leads, the circuit performs better at high frequencies. When selecting components, look for “LCSC” or “Digi-Key” part numbers early in the design phase. This ensures that when you are ready to order your boards, the components are actually in stock. Many PCB manufacturers now offer PCBA (PCB Assembly) services, where they will actually solder the SMD components for you for a small fee, which is a fantastic option if you need to produce 5 or 10 identical units.

Prototyping the Enclosure: Making it “Field-Ready”

A professional IoT project isn’t just a bare board; it needs a home. Once your PCB dimensions are finalized, you should design or select an enclosure. If your project is going outdoors, you’ll need an IP65 or IP67-rated waterproof box. For indoor projects, a custom 3D-printed enclosure provides a polished look. Design your PCB with mounting holes in the corners! It is a common mistake to finish a beautiful PCB design only to realize there is no way to secure it inside a case without using hot glue.

When designing the enclosure, consider the “User Interface.” Do you need access to a USB port for firmware updates? Do you need a hole for a status LED or a reset button? If your ESP32 project uses sensors (like a DHT22 for temperature), don’t trap them inside a sealed box where they will only measure the heat generated by the ESP32 itself. Use vents or external probes to ensure accurate data. Standardizing your connectors—using JST-PH or XH connectors instead of soldering wires directly to the board—will make the assembly and maintenance of your device much easier.

Recommended Workflow for ESP32 PCB Design

1. Verify on Breadboard: Ensure your code and circuit logic work 100% before starting the PCB layout.
2. Select EDA Tool: Use software like KiCad (free/open-source), EasyEDA (beginner-friendly), or Fusion 360 Electronics.
3. Design Schematic: Include the ESP32 module, voltage regulator, decoupling caps, and programming headers.
4. PCB Layout: Route power traces first, place the antenna at the edge, and fill empty spaces with a Ground Plane.
5. Design Rule Check (DRC): Run the automated check to ensure no traces are touching or too close together.
6. Generate Gerbers: Export the files required by manufacturers (JLCPCB, PCBWay, etc.).
7. Assembly: Solder the components, starting with the shortest (resistors/capacitors) and ending with the ESP32.

Common Pitfalls to Avoid

Even experienced designers make mistakes when moving from breadboard to PCB. One of the most frequent errors is incorrect pin mapping. The GPIO numbers printed on a development board don’t always match the physical pin numbers of the ESP32 chip itself. Always refer to the official datasheet’s pinout diagram rather than a third-party cheat sheet. Another common issue is failing to provide a way to “debug” the board. Once the components are soldered, you can’t easily move wires. Always include “Test Points” on your PCB—small exposed copper pads where you can touch a multimeter probe to check voltages or an oscilloscope to see signals.

Another major consideration is Heat Dissipation. While the ESP32 doesn’t get extremely hot, the linear voltage regulators used to step down 12V or 9V to 3.3V can. If you are powering your project from a high-voltage source, a linear regulator will dissipate the excess voltage as heat. If the regulator gets too hot, it will shut down, causing your ESP32 to reboot constantly. In these cases, use a switching regulator (Buck Converter) or ensure your PCB has enough copper area around the regulator to act as a heatsink.

Conclusion: The Path to Hardware Mastery

Moving from a breadboard to a custom PCB is a transformative step in your journey as a maker and engineer. It forces you to think deeply about power management, signal integrity, and mechanical constraints—skills that are essential in the professional electronics industry. While the first time you hit “Order” on a PCB website can be nerve-wracking, there is no feeling quite like receiving a package of professionally manufactured boards that you designed from scratch. Even if your first revision has a minor mistake (and most do!), it provides a much more stable platform for your IoT code than any breadboard ever could.

The best next step is to download KiCad or open EasyEDA and try to recreate your simplest ESP32 project as a schematic. Don’t worry about making it perfect on the first try. Focus on getting the power circuit right and making sure the “Boot” and “EN” pins are correctly pulled. Once you have a physical board in your hand, the “rat’s nest” of wires will become a thing of the past, and your IoT projects will finally be ready for the real world. Happy designing!

If you’ve ever spent a weekend meticulously soldering components for a custom smart home sensor, only to have the enclosure warp under the sun’s glare or snap while you were snapping the lid shut, you know the frustration of choosing the wrong 3D printing material. For the longest time, the hobbyist community leaned heavily on PLA (Polylactic Acid) because it’s incredibly easy to print, or ABS (Acrylonitrile Butadiene Styrene) because it’s tough. However, the unique demands of IoT (Internet of Things) devices—which often require a balance of durability, heat resistance, and radio-transparency—make these traditional choices less than ideal. PLA tends to deform in temperatures as low as 50°C (122°F), and ABS is notorious for warping during the printing process, making it a nightmare for large, dimensionally accurate enclosures.

Enter PETG (Polyethylene Terephthalate Glycol-modified). This material has emerged as the “Goldilocks” filament for the maker and engineering communities alike. It bridges the gap between the user-friendly nature of PLA and the mechanical robustness of ABS. For IoT projects, where your electronics might be tucked away in a damp basement, mounted on a sun-drenched exterior wall, or squeezed into a tight industrial cabinet, PETG offers a suite of properties that ensure your hard work survives the real world. In this guide, we will dive deep into why PETG is the superior choice for functional electronics housing and how you can master its quirks to produce professional-grade results.

The Chemical Advantage: Why PETG Beats PLA and ABS

To understand why PETG is so effective, we have to look at its molecular makeup. PETG is a modified version of PET, the same plastic used in water bottles. The “G” stands for glycol, which is added during the polymerization process to prevent the plastic from becoming brittle and to lower its melting point just enough to make it 3D printable. This modification results in a material that is naturally clear (though it comes in many colors) and possesses a high degree of “toughness”—the ability to absorb energy and deform without breaking. Unlike PLA, which is rigid and snaps under pressure, PETG has a slight flex that allows it to survive drops and mechanical stress.

From a thermal perspective, PETG sits in a sweet spot. Its glass transition temperature (the point where it starts to soften) is typically around 80°C (176°F). This is significantly higher than PLA’s 50-60°C. For an IoT device containing a processor like an ESP32 or a Raspberry Pi, internal heat can build up quickly in a small enclosure. PETG can withstand these internal temperatures without sagging. Furthermore, PETG is chemically resistant to acids, alkalis, and many solvents. This makes it ideal for industrial IoT sensors that might be exposed to oils or cleaning agents, environments where other plastics would degrade or discolor over time.

Radio-Transparency and Signal Integrity

One of the most overlooked factors in choosing an enclosure material for IoT is how it affects wireless communication. Whether your device uses Wi-Fi, Bluetooth, LoRa, or Zigbee, the signals must pass through the enclosure walls to reach the gateway or router. Some materials, especially those with high carbon content or metallic additives, can attenuate (weaken) these signals. PETG is naturally RF-transparent. Because it does not require the same heavy chemical additives that some flame-retardant ABS or reinforced filaments do, it allows electromagnetic waves to pass through with minimal interference.

This radio-transparency is vital when designing compact enclosures where the antenna might be positioned very close to the plastic wall. Additionally, PETG’s ability to be printed in translucent or even transparent varieties allows makers to incorporate status LEDs directly inside the case. Instead of drilling holes for light pipes or external LEDs, you can design a thin-walled section in your PETG enclosure that allows the internal LED light to diffuse through the plastic. This creates a sleek, professional look while maintaining the water-tight integrity of the housing.

Achieving Perfect Layer Adhesion for Waterproofing

Many IoT devices are destined for outdoor environments, where they face rain, humidity, and dew. While 3D prints are inherently porous due to the way layers are stacked, PETG offers some of the best inter-layer adhesion in the industry. When printed at the correct temperature (usually between 230°C and 250°C), the layers of PETG “weld” together much more effectively than PLA or ABS. This creates a bond that is nearly as strong as the material itself, making the part isotropic (strong in all directions).

To achieve a truly waterproof or “weather-resistant” enclosure with PETG, consider the following technical adjustments:

• Increase Wall Thickness: Instead of relying on infill, use at least 3 or 4 perimeters (walls). This creates a solid barrier that water cannot easily penetrate.
• Slightly Over-Extrude: Increasing your flow rate (extrusion multiplier) to 102% or 105% can help fill the tiny gaps between layers, ensuring a vacuum-tight seal.
• Lower the Cooling Fan: PETG loves heat. While a fan is necessary for bridges and overhangs, keeping it at 20-30% or even turning it off for structural parts will maximize layer fusion.

Dimensional Stability and Mechanical Fastening

IoT enclosures often require precise tolerances for mounting PCBs, connecting sensors, and securing lids with screws. This is where PETG’s dimensional stability shines. Unlike ABS, which shrinks significantly as it cools—often causing corners to lift or circular holes to become oval—PETG shrinks very little. This means that if you design a mounting post for a 2mm screw, it will actually measure 2mm when the print is finished. This predictability is essential for “snap-fit” designs where a lid must click into place with just the right amount of friction.

Furthermore, PETG is excellent for threaded inserts. If your IoT device needs to be opened frequently for battery changes or maintenance, self-tapping screws into plastic will eventually strip the threads. The preferred method is using brass heat-set inserts. Because PETG has a wide melting range, it accepts these inserts beautifully, creating a permanent, high-strength metal thread within the plastic. The material flows around the knurling of the insert and solidifies into a rock-hard bond that won’t crack under the stress of tightening a bolt.

UV Resistance: The Key to Outdoor IoT Longevity

If you are building a weather station, a garden moisture sensor, or an outdoor security camera mount, UV resistance is non-negotiable. Standard PLA will become brittle and begin to flake away after just a few months of exposure to direct sunlight. While ABS is tougher, it also suffers from UV degradation, often turning yellow and losing its impact resistance. PETG, however, is naturally UV resistant. While it isn’t completely immune over decades, it performs remarkably well in outdoor conditions without the need for additional painting or UV-protective coatings.

When designing for the outdoors, color choice also matters. While PETG’s chemical structure handles UV well, lighter colors will reflect more heat, keeping the internal electronics cooler. A white or light gray PETG enclosure is often the best choice for solar-powered IoT devices. This combination of material durability and thermal management ensures that your outdoor nodes won’t fail during the peak of summer or the dead of winter.

Practical Guidance: Setting Up Your Printer for PETG

While PETG is easier than ABS, it isn’t quite as “plug-and-play” as PLA. It has a reputation for being stringy and sticking too well to certain build surfaces. To master PETG for your IoT projects, follow these setup steps:

1. Bed Preparation: PETG can actually pull chunks out of glass build plates (PEI or bare glass) because its adhesion is so strong. Always use a release agent like hairspray, a glue stick, or a dedicated 3D printing adhesive. This acts as a barrier that allows you to remove the part once it cools.
2. The “First Layer Gap”: Unlike PLA, which likes to be “squished” into the bed, PETG prefers a slightly larger gap. If your nozzle is too close, the filament will build up on the nozzle and create burnt blobs that ruin the print. Increase your Z-offset by about 0.02mm to 0.05mm compared to your PLA settings.
3. Manage Retraction: To fight the “stringing” or “oozing” PETG is known for, you need to fine-tune your retraction settings. Start with a retraction distance of 3-5mm for Bowden extruders or 1-2mm for direct drive, with a slightly slower retraction speed (around 25-30mm/s).
4. Dry Your Filament: PETG is hygroscopic, meaning it absorbs moisture from the air. If you hear “popping” sounds during printing or see bubbles in your walls, your filament is wet. Using a filament dryer or a food dehydrator for a few hours at 65°C can transform a “failed” roll into a perfect one.

Common Mistakes and Critical Considerations

Even with its many benefits, there are pitfalls to avoid when working with PETG for functional enclosures. The most common mistake is over-cooling. Beginners often leave their print fans at 100%, resulting in parts that look great but split apart along the layer lines at the slightest touch. For functional IoT parts, strength is more important than aesthetics—keep that fan speed low.

Another consideration is clearance for components. Because PETG is slightly more flexible than PLA, it can “creep” or deform slightly over long periods if under constant heavy tension. If your enclosure design relies on a very tight press-fit for a heavy battery, the plastic might eventually relax, causing the battery to rattle. In these cases, use mechanical fasteners or internal ribs to provide structural support.

Finally, be mindful of support material removal. PETG sticks to itself so well that supports can be very difficult to remove. When designing your IoT enclosure, try to use 45-degree angles to make the part “self-supporting” or use “organic/tree supports” with a larger Z-distance (the gap between the support and the part) to ensure they snap off cleanly without scarring the surface of your enclosure.

Conclusion: Elevating Your IoT Projects with PETG

Mastering PETG is a rite of passage for any maker moving from decorative models to functional engineering. For IoT enclosures, the material offers an unbeatable combination of thermal resistance, UV stability, and RF-transparency. It ensures that your electronics are protected from the elements while maintaining the signal integrity required for modern wireless communication. While it requires a bit more finesse than PLA regarding bed adhesion and stringing management, the result is a professional, durable product that can withstand the rigors of real-world use.

If you’re ready to take your IoT projects to the next level, start by printing a simple test enclosure in PETG. Experiment with wall thicknesses and heat-set inserts to see how the material behaves. Once you experience the confidence of a housing that won’t warp in a hot car or crack in the winter cold, you’ll find that PETG becomes your go-to “workhorse” filament for everything functional. The next step? Look into Carbon Fiber-infused PETG if you need even more rigidity and a stunning matte finish for your high-end sensor nodes.

The rise of Large Language Models (LLMs) like GPT-4 and Claude has fundamentally changed how we interact with information, but for many privacy-conscious users and developers, the reliance on cloud-based providers presents a significant hurdle. Whether it is the concern of sensitive data being used for training, the recurring cost of subscriptions, or the latency of internet-dependent services, the need for a localized solution has never been more pressing. Imagine having the power of a sophisticated AI assistant running entirely on your hardware, where your data never leaves your local network, and you have complete control over which models are used and how they are configured. This isn’t just a futuristic concept; it is a practical reality achievable today through the combination of Ollama and Open WebUI.

Setting up a private AI assistant requires two main components: a backend engine to handle the heavy lifting of model inference and a frontend interface to provide a user-friendly experience similar to ChatGPT. Ollama serves as the robust engine, simplifying the process of downloading and running open-source models like Llama 3, Mistral, and Phi-3. Open WebUI (formerly known as Ollama WebUI) acts as the bridge, offering a polished, feature-rich interface that supports everything from document uploads to image generation and multi-user management. In this guide, we will walk through the detailed process of setting up this powerful duo, exploring why this architecture is the gold standard for self-hosted AI and how to optimize it for your specific needs.

Understanding the Architecture: Why Ollama and Open WebUI?

Before diving into the installation, it is crucial to understand why this specific combination is favored by the self-hosting community. Ollama is designed to manage the complexities of model weights, quantization, and hardware acceleration. It essentially acts as a localized API server. Without a tool like Ollama, running a model would require manual environment configuration, managing CUDA drivers for NVIDIA GPUs, and complex CLI commands just to generate a single response. Ollama packages these into a simple, performant service that runs in the background of your OS.

However, interacting with an AI through a terminal window is far from ideal for daily productivity. This is where Open WebUI shines. It is not just a “skin” for Ollama; it is a comprehensive management platform. It allows for Retrieval-Augmented Generation (RAG), which means you can upload PDFs or text files, and the AI will “read” them to provide context-aware answers. It also supports “Functions” and “Tools,” allowing the AI to browse the web or perform calculations. By decoupling the interface from the engine, you gain the flexibility to update your models independently of your UI, ensuring your private assistant stays on the cutting edge of AI research.

System Requirements and Prerequisites

Running LLMs locally is resource-intensive, particularly when it comes to RAM and VRAM (Video RAM). To have a smooth experience, you should evaluate your hardware against the models you intend to run. For smaller models like Llama 3 8B or Mistral 7B, a minimum of 8GB of RAM is necessary, though 16GB is highly recommended. If you have an NVIDIA GPU with at least 8GB of VRAM, Ollama will utilize CUDA to significantly speed up inference times. Users on Apple Silicon (M1, M2, M3 chips) will find that Ollama is exceptionally well-optimized for Apple’s Unified Memory architecture, often rivaling mid-range dedicated GPUs.

In terms of software, you will need Docker installed on your machine. While Ollama can run as a native application on Windows, macOS, and Linux, Open WebUI is best deployed via Docker containers. This ensures that all dependencies are isolated and won’t interfere with your host system’s configuration. If you are new to Docker, think of it as a way to run “pre-packaged” software environments that work exactly the same way regardless of which computer they are on. Ensure your Docker installation is up to date and that you have the “Docker Compose” plugin if you plan on more complex setups later.

Step 1: Installing and Configuring Ollama

The first practical step is getting Ollama up and running. You can download the installer directly from the official Ollama website. Once installed, Ollama runs as a background service. On macOS and Windows, you will see a small icon in your menu bar or system tray. To verify the installation, open your terminal or command prompt and type ollama --version. If it returns a version number, you are ready to pull your first model.

To download a model, use the pull command. For example, to download Meta’s latest model, type:

ollama pull llama3
This will download several gigabytes of data. Once finished, you can test it immediately by typing ollama run llama3. While this allows you to chat in the terminal, the real magic happens once we connect it to Open WebUI. One important note for Docker users: if you plan to run Open WebUI in a container while Ollama runs natively on your host, you must ensure Ollama is listening on all network interfaces by setting the environment variable OLLAMA_HOST=0.0.0.0.

Step 2: Deploying Open WebUI via Docker

With Ollama running, it’s time to launch the interface. Open WebUI provides a single Docker command that pulls the image and sets up a persistent volume for your chats and settings. Open your terminal and run the following command:

docker run -d -p 3000:8080 --add-host=host.docker.internal:host-gateway -v open-webui:/app/backend/data --name open-webui ghcr.io/open-webui/open-webui:main

Let’s break down what this command does:

• -d: Runs the container in “detached” mode (in the background).
• -p 3000:8080: Maps port 3000 on your computer to port 8080 in the container. You will access the UI at http://localhost:3000.
• –add-host=host.docker.internal:host-gateway: This is a critical flag. It allows the container to talk to the Ollama service running on your host machine.
• -v open-webui:/app/backend/data: This creates a “volume,” ensuring your chat history and uploaded documents aren’t deleted when the container stops.

After the download finishes, wait about 30 seconds for the backend to initialize, then open your browser and navigate to the address specified. You will be greeted with a login screen. Since this is your local instance, the first account created becomes the Admin account. No data is sent to the developers; this is purely for local access control.

Customizing Your Experience: RAG and Model Management

One of the most powerful features of Open WebUI is its built-in RAG (Retrieval-Augmented Generation) engine. Within the interface, you can click the “+” icon or go to the “Documents” section to upload PDF, text, or markdown files. Once uploaded, you can reference these files in your chat by typing # followed by the document name. This tells the AI to search your local files for relevant information before generating a response. This is perfect for analyzing long manuals, research papers, or personal notes without ever uploading them to a third-party cloud.

Furthermore, Open WebUI allows you to create “Model Files” (similar to System Prompts). You can define a custom persona for your AI—perhaps a “Python Expert” or a “Creative Writing Coach.” By setting a System Prompt in the Model settings, you instruct the LLM on how to behave consistently. You can also adjust parameters like Temperature (higher makes the AI more creative, lower makes it more factual) and Top-K sampling directly from the UI settings, giving you granular control over the AI’s “personality.”

Common Mistakes and Troubleshooting

Even with a straightforward setup, users often encounter a few common hurdles. The most frequent issue is the “Connection Refused” error when Open WebUI tries to talk to Ollama. This usually happens because Ollama, by default, only listens to requests coming from the same machine (localhost), and Docker containers are technically on a “different” network. If you are on Linux, you may need to edit the ollama.service file to include Environment="OLLAMA_HOST=0.0.0.0". On Windows/macOS, ensure the Docker command includes the --add-host flag mentioned earlier.

Another common mistake is ignoring hardware limitations. If you try to run a model that is too large for your VRAM (e.g., trying to run a 70B parameter model on an 8GB card), Ollama will fall back to “System RAM” (CPU inference). This will result in extremely slow generation speeds, sometimes as slow as one word every few seconds. Always check the model size; a general rule of thumb is that 4-bit quantized models require about 0.7GB of VRAM per billion parameters. For an 8B model, you need at least 5.6GB of VRAM just for the weights, plus extra for the context window.

Lastly, keep an eye on Docker disk usage. As you pull multiple models (Llama, Gemma, Mistral, etc.), you can quickly consume 50GB+ of storage. Periodically clean up unused images and containers using docker system prune if you find your hard drive filling up unexpectedly.

Security and Privacy Considerations

While the primary goal of this setup is privacy, “local” does not automatically mean “secure” if your network is exposed. If you plan to access your Open WebUI instance from outside your home (for example, on your phone while traveling), do not simply open ports on your router. This exposes your AI and your data to the public internet. Instead, use a VPN or a tool like Tailscale or Cloudflare Tunnels with authentication enabled. These tools provide a secure, encrypted “tunnel” to your home network without opening dangerous holes in your firewall.

Additionally, remember that while the inference is local, some “Functions” in Open WebUI—like the Web Search tool—will naturally need to connect to the internet to fetch data. If your goal is a completely “air-gapped” experience, disable these external integrations in the settings. By default, Open WebUI does not send your chat data to any external telemetry servers, but it is always good practice to review the settings under “Privacy & Security” after every major update to ensure your configuration remains strictly local.

Conclusion: The Future of Your Private AI

Building a private AI assistant with Ollama and Open WebUI is more than just a fun weekend project; it is a step toward data sovereignty. By moving away from centralized AI providers, you gain the freedom to experiment with various open-source models, ensure your personal or corporate data remains confidential, and avoid the unpredictability of subscription pricing. The combination of Ollama’s efficient backend and Open WebUI’s feature-rich frontend provides a user experience that rivals the best commercial products while remaining entirely under your control.

As a next step, I recommend exploring the Open WebUI Community (often found on Discord or GitHub) to discover custom “Functions” and “Tools” that other users have created. You can find scripts that allow your AI to control smart home devices, summarize YouTube videos, or even generate images using Stable Diffusion. The ecosystem is growing rapidly, and now that you have the foundation installed, you are perfectly positioned to integrate the latest breakthroughs in local AI as soon as they are released. Happy chatting!

For many tech enthusiasts and professionals, the rise of Large Language Models (LLMs) like GPT-4 has been a double-edged sword. On one hand, the productivity gains are undeniable; on the other, the growing reliance on cloud-based AI services raises significant concerns regarding data privacy, long-term costs, and “model drift.” When you send your sensitive code, proprietary business strategies, or personal thoughts to a cloud provider, you are essentially surrendering control over that data. This creates a barrier for industries with strict compliance requirements, such as healthcare or finance, and for individuals who simply value their digital sovereignty. The dream has always been to have a “brain in a box”—a powerful, intelligent assistant that lives entirely on your hardware, requires no internet connection, and never leaks your data.

The release of Meta’s Llama 3 has finally brought that dream within reach for the average user. Unlike its predecessors, Llama 3 offers a level of reasoning and linguistic nuance that rivals closed-source models, but it is small enough to run on modern consumer-grade GPUs. However, the barrier to entry for local AI used to be high, involving complex Python environments, CUDA configurations, and dependency nightmares. Enter Ollama: a streamlined, open-source tool that simplifies the process of running LLMs locally to a single command. By combining the power of Llama 3 with the accessibility of Ollama, we are entering a new era where privacy-conscious AI is not just a niche hobby, but a practical reality for developers, writers, and researchers alike.

The Architecture of Privacy: Why Local AI Matters

Running an AI model locally is about more than just avoiding a monthly subscription fee; it is about data gravity and security. When you use a cloud-based AI, your prompts are processed on servers owned by third parties. Even with “enterprise privacy” settings, your data is still transiting the public internet and being stored in a database you don’t control. For developers working on proprietary software or researchers handling sensitive datasets, this is a non-starter. By running Llama 3 on your own hardware, the data never leaves your local network. The “inference” (the process of the AI generating a response) happens entirely within your RAM and VRAM, ensuring that your most sensitive intellectual property remains under your physical control.

Furthermore, local AI eliminates the risk of “model censorship” or behavioral changes imposed by cloud providers. We have all experienced a situation where a cloud AI suddenly refuses to answer a prompt it would have handled a week ago due to a change in “safety” filters. When you host the model yourself, you are the ultimate authority. You choose the specific version of the model, the system prompt, and the parameters. This consistency is vital for building reliable workflows where the AI’s behavior must be predictable and repeatable over time. With Ollama, this level of control is no longer reserved for DevOps experts; it is accessible to anyone comfortable with a terminal window.

Understanding Llama 3: The Powerhouse Under the Hood

Llama 3 represents a significant leap forward in the open-weights movement. Meta trained this model on a massive dataset—over 15 trillion tokens—resulting in a model that is remarkably dense in knowledge and highly capable of following complex instructions. One of the most important aspects for local users is the 8B (8 billion parameter) variant. This specific model is the “sweet spot” for home hardware. It is small enough to fit into the 8GB or 12GB of VRAM found on modern NVIDIA or Apple Silicon chips, yet it outperforms many models twice its size in benchmarks related to coding and logic.

The intelligence of Llama 3 lies in its improved tokenizer and refined training process. It handles nuances in language much better than Llama 2, showing a marked reduction in “hallucinations” and a better grasp of multi-step reasoning. For the end user, this means the AI is more likely to give you a working code snippet or a coherent summary on the first try. Because Llama 3 is an “open-weights” model, the community has also created various quantized versions. Quantization is a process that reduces the precision of the model’s numbers (from 16-bit to 4-bit, for example) to save memory without significantly sacrificing intelligence. Ollama handles these quantizations automatically, ensuring you get the best performance possible for your specific hardware configuration.

What is Ollama and Why is it the Best Choice?

If Llama 3 is the “engine,” then Ollama is the “chassis and dashboard” that makes the engine usable. Historically, running a local LLM required installing complex libraries like PyTorch or Transformers and managing hardware drivers manually. Ollama changes this by packaging everything into a lightweight background service. It manages model weights, handles the complex math of quantization, and provides a simple API for other applications to talk to. It effectively turns your computer into a local AI server with almost zero configuration.

One of Ollama’s greatest strengths is its Model Library. Similar to how Docker handles software containers, Ollama allows you to “pull” models from a central repository. You don’t have to go hunting on Hugging Face for the right file format; you simply type ollama run llama3, and the software handles the rest. It automatically detects your hardware—whether you have an NVIDIA GPU, an AMD card, or an Apple M-series chip—and optimizes the execution to provide the fastest possible response times. This cross-platform compatibility makes it the gold standard for local AI deployment today.

Hardware Requirements: What Do You Actually Need?

Before diving into the installation, it’s important to manage expectations regarding hardware. While Ollama can run Llama 3 on a standard CPU, the experience will be painfully slow—generating maybe one word per second. To get a “ChatGPT-like” snappy experience, you need a GPU with sufficient VRAM. The VRAM (Video RAM) is the most critical factor because the entire model must be loaded into the GPU’s memory for fast processing.

• Entry Level (Mac): Any Mac with an M1, M2, or M3 chip and at least 16GB of Unified Memory. Apple’s architecture is excellent for local AI because the GPU and CPU share the same pool of high-speed memory.
• Entry Level (PC): An NVIDIA GPU with at least 8GB of VRAM (e.g., RTX 3060, 4060). This will comfortably run the 8B version of Llama 3 at high speeds.
• Professional Level: An NVIDIA RTX 3090 or 4090 with 24GB of VRAM. This allows you to run the much larger 70B version of Llama 3 (though usually in a quantized 4-bit format), which offers near GPT-4 levels of intelligence.
• RAM: Regardless of your GPU, having at least 16GB of system RAM is highly recommended to handle the background processes and data transfer.

If you don’t have a dedicated GPU, don’t lose heart. Ollama will fall back to your CPU. While it won’t be fast enough for a long conversation, it is still perfectly usable for small tasks like proofreading a paragraph or summarizing a short email. However, if you plan to use local AI daily, investing in a mid-range GPU is the single best upgrade you can make.

Step-by-Step Guide: Running Llama 3 with Ollama

The beauty of Ollama is its simplicity. Regardless of whether you are on Windows, macOS, or Linux, the process is designed to be completed in less than five minutes. Follow these steps to get your private AI up and running:

Step 1: Download and Install

Visit the official Ollama website and download the installer for your operating system. For macOS and Windows, it is a standard “double-click” installation. For Linux users, a single curl command provided on the site will handle the setup and even configure your GPU drivers if they are present. Once installed, Ollama usually runs as a small icon in your system tray or menu bar.

Step 2: Run Your First Model

Open your terminal (Command Prompt or PowerShell on Windows, Terminal on Mac/Linux) and type the following command:

ollama run llama3

The first time you run this, Ollama will download the Llama 3 weights (approx. 4.7GB for the 8B model). Once the download is complete, you will see a prompt that says >>> Send a message. You are now chatting with a world-class AI running entirely on your machine. You can ask it to write code, explain quantum physics, or draft an email.

Step 3: Experiment with Different Sizes

If your hardware is powerful enough, you might want to try the larger version. You can pull the 70B version (which requires about 40GB of VRAM/Memory) by typing:

ollama run llama3:70b

Conversely, if you find the default model is too slow, you can explore smaller models like Phi-3 or Mistral by simply changing the model name in the run command. To exit the chat at any time, simply type /bye.

Customizing Your Experience: Modelfiles and Tools

Running Llama 3 in a terminal is great for testing, but for a truly professional experience, you’ll want to integrate it into your workflow. Ollama supports “Modelfiles,” which are similar to Dockerfiles. These allow you to define a “system prompt” to give your AI a specific personality or set of constraints. For example, you can create a Modelfile that tells Llama 3 it is a “Senior React Developer” who always responds with concise code and no fluff. You then “build” this custom model in Ollama, and it’s ready to go whenever you need it.

Beyond the terminal, the community has built incredible GUI (Graphical User Interface) tools that connect to Ollama. One of the most popular is Open WebUI (formerly Ollama WebUI), which provides a sleek interface identical to ChatGPT, including chat history, file uploads, and image generation integration. For developers, there are plugins for VS Code (like Continue.dev) that allow you to use Llama 3 for local code autocompletion and refactoring, ensuring your company’s codebase never leaves your machine.

Common Mistakes and Performance Bottlenecks

While Ollama makes local AI easy, there are several common pitfalls that can degrade your experience. The most frequent issue is VRAM overflow. If you try to run a model that is larger than your GPU’s memory, Ollama will “offload” parts of the model to your system RAM. This causes a massive performance hit, often slowing the response time by 90% or more. Always check the size of the model (8B, 70B, etc.) against your available hardware before expecting high performance.

Another common mistake is neglecting system cooling. Running an LLM is one of the most computationally intensive tasks you can perform. Your GPU will generate a significant amount of heat during long generation sessions. If your laptop or desktop has poor airflow, the system will “thermal throttle,” slowing down the processor to prevent damage, which in turn slows down your AI responses. Ensure your fans are clean and your computer has room to breathe. Lastly, remember that quantization matters. While a 4-bit quantized model is the standard, some users try to run “Full Precision” (FP16) models. For most use cases, the difference in intelligence is negligible, but the memory requirement is four times higher. Stick to the default Ollama pulls unless you have a specific scientific reason to do otherwise.

Conclusion: The Future is Local

The ability to run a model as capable as Llama 3 on your own hardware using Ollama is a watershed moment for digital privacy and personal computing. We are moving away from a world where “AI” is a mysterious, centralized service owned by a handful of tech giants, and toward a future where sovereign AI is a standard tool in every professional’s kit. By following the steps outlined in this guide, you have reclaimed control over your data while still benefiting from the cutting edge of machine learning.

If you have successfully set up Ollama, your next step should be integration. Try connecting your local Llama 3 instance to a productivity tool like Obsidian for note-taking, or use it as a local backend for a coding assistant in your IDE. The more you use local AI, the more you will realize that the “convenience” of the cloud often isn’t worth the sacrifice of privacy. Start small, experiment with different models, and enjoy the peace of mind that comes with knowing your thoughts and data remain exactly where they belong: with you.

If you have ever spent hours designing and printing a custom 3D enclosure for an electronics project, you know the sinking feeling of having a plastic screw hole strip out during the very first assembly. Standard 3D printed threads are notoriously fragile, and self-tapping screws often act more like drills, carving away the delicate layers of PLA or PETG until there is nothing left for the threads to grab onto. This leaves makers with a frustrating dilemma: either glue the case shut permanently or deal with a wobbly, insecure lid that eventually fails. This is where heat-set threaded inserts change the game, transforming a hobbyist print into a robust, professional-grade piece of hardware that can be disassembled and reassembled hundreds of times without loss of structural integrity.

Heat-set inserts are small brass cylinders with internal machine threads and a knurled exterior pattern. When pressed into a pre-designed hole using a soldering iron, the surrounding plastic melts, flows into the grooves of the insert, and then solidifies, creating a permanent bond that is significantly stronger than any screw-to-plastic connection. Understanding how to integrate these components into your workflow is essential for anyone looking to move beyond “prototypes” and toward “products.” By mastering the geometry of the holes, the selection of materials, and the physical installation process, you can ensure your 3D prints are as durable as injection-molded parts found in consumer electronics.

The Anatomy and Mechanics of Heat-Set Inserts

To use heat-set inserts effectively, you first need to understand how they work from a mechanical perspective. Unlike a standard nut, which relies on a flat surface to provide tension, a heat-set insert uses its “knurling”—the textured pattern on the outside—to create a mechanical interlock with the plastic. There are several patterns available, but the most common for 3D printing are diagonal or opposing-diagonal knurls. As the brass reaches the glass transition temperature of your filament, the plastic becomes a viscous fluid that is forced into these patterns. Once the heat source is removed and the plastic cools, the insert is trapped by both friction and physical geometry, preventing it from pulling out or spinning when you tighten a bolt.

The material of the insert itself is almost always brass, which is chosen for its excellent thermal conductivity. Brass heats up quickly and evenly, which is vital for a clean installation. If the heat were uneven, you might melt one side of the hole more than the other, causing the insert to sit at an angle. Furthermore, the internal threads are precision-machined to standard metric or imperial sizes, typically ranging from M2 to M8 for most 3D printing applications. Because you are screwing a metal bolt into metal threads, the friction is consistent, and the risk of “galling” or stripping the threads is virtually non-existent under normal torque levels.

When selecting inserts, you will often encounter two main types: straight-wall and tapered. Straight-wall inserts are generally preferred for 3D printing because they provide a consistent surface area for the plastic to grip throughout the depth of the hole. Tapered inserts are common in traditional injection molding but can be trickier to align manually with a soldering iron. For most desktop 3D printing projects, standard “long” or “short” series straight-wall inserts (like those popularized by brands such as CNC Kitchen or McMaster-Carr) provide the best balance of ease of use and pull-out resistance.

Designing Your 3D Models for Success

The secret to a professional result starts in your CAD software, not at the soldering station. You cannot simply use the same hole diameter as the screw you intend to use. Each insert manufacturer provides a “recommended hole diameter,” and following these specifications is critical. If the hole is too small, you will displace too much plastic, leading to an ugly “volcano” of melted filament around the top of the insert. If the hole is too large, there won’t be enough plastic to flow into the knurling, resulting in an insert that spins freely or pulls out under minimal load. Generally, the hole should be slightly smaller than the outer diameter of the insert but larger than the internal thread diameter.

Another crucial design consideration is the wall thickness around the hole. Because the installation process involves melting plastic, the surrounding walls need enough thermal mass to prevent the entire boss from deforming. A good rule of thumb is to have at least two to three times the wall thickness of the insert’s radius. For example, if you are using an M3 insert with an outer diameter of 5mm, you should ensure the plastic “boss” or pillar housing that insert has a total diameter of at least 9mm to 10mm. This prevents the heat from radiating to the outer surface of your enclosure, which would cause visible bulging or “ghosting” on the exterior of your print.

Finally, consider the depth of the hole. It should always be slightly deeper than the length of the insert itself. This provides a small cavity at the bottom where any excess melted plastic can collect without interfering with the bolt. If the hole is too shallow, the insert won’t sit flush with the surface, or the displaced plastic will be forced upward, creating a mess that requires sanding or cutting later. Using a slight countersink or a 45-degree chamfer at the top of the hole can also help “seat” the insert before you apply heat, ensuring it starts off perfectly centered.

Material Selection: PLA, PETG, and Beyond

Not all 3D printing filaments react to heat-set inserts in the same way. PLA is the most common material for beginners, and while it works well with inserts, it has a very low glass transition temperature (around 60°C). This means that while the inserts are easy to install, the plastic can soften if the finished product is used in a warm environment, potentially causing the inserts to shift over time under heavy loads. If your enclosure will house electronics that generate significant heat, such as a motor driver or a high-powered microprocessor, PLA might not be the best choice for a threaded assembly.

PETG and ABS are generally considered superior for professional enclosures using threaded inserts. PETG offers a higher thermal threshold than PLA and has a “gummy” consistency when melted, which helps it flow deeply into the knurling of the insert for a very strong bond. ABS and ASA are even better, as they have excellent thermal stability and a very predictable melting behavior. Because these materials are more heat-resistant, the finished assembly can withstand much higher operating temperatures without the inserts becoming loose. If you are building something for automotive or industrial use, Nylon is the gold standard, though it requires higher soldering iron temperatures to install the inserts properly.

It is also worth noting the impact of infill and wall counts on the strength of the insert. An insert is only as strong as the plastic holding it. If your print has only two wall perimeters and 10% infill, the insert is essentially sitting in a hollow shell. To maximize pull-out strength, increase your wall count (perimeters) so that the insert is entirely surrounded by solid plastic. For an M3 insert, 4 or 5 walls are usually sufficient to ensure the knurling is biting into solid material rather than thin air and sparse infill lines.

Tools of the Trade: Beyond the Standard Soldering Iron

While you can install a heat-set insert using a standard conical soldering iron tip, it is far from ideal. A standard tip is often too long or too pointed, making it difficult to keep the insert vertical as it sinks into the plastic. Furthermore, the plastic can easily stick to a standard tip, leaving a charred residue that ruins the appearance of your print. For a truly professional result, you should invest in specialized “heat-set insert tips.” These are short, flat-bottomed tips designed specifically to fit inside the internal diameter of the insert without touching the threads.

These specialized tips offer two major advantages. First, the flat shoulder of the tip pushes the insert down evenly, ensuring it remains perpendicular to the surface. Second, they are usually made of brass or have a non-stick coating that prevents the plastic from clinging to the tool. If you are on a budget, you can find affordable sets of these tips that fit most common Hakko-style or TS100/TS80 soldering irons. Having the right tool reduces the “fidget factor” and significantly increases the repeatability of your assembly process.

For those who do a lot of production work, a vertical press or an “inserting jig” is a worthwhile addition to the workshop. This can be as simple as a 3D printed stand that holds your soldering iron in a vertical drill-press style arrangement. By using a jig, you eliminate human error in the angle of insertion. Every insert will go in perfectly straight, which is vital for enclosures where multiple screws must align with a PCB or a secondary panel. If your inserts are even slightly crooked, the bolts will cross-thread or fail to reach the holes in the mating part, rendering the enclosure useless.

Step-by-Step Installation Technique

To begin the installation, set your soldering iron to a temperature slightly above the printing temperature of your filament. For PLA, 220°C to 230°C is usually sufficient; for PETG, aim for 250°C; and for ABS, 270°C or higher may be necessary. The goal is to heat the brass quickly so it melts the plastic on contact, but not so hot that it causes the plastic to smoke or boil. Place the insert into the pre-designed hole in your print. It should sit slightly in the hole thanks to the chamfer you designed earlier, standing upright on its own.

Gently place the heated iron tip into the center of the insert. Do not apply heavy downward pressure; let the weight of the iron and the heat do the work. As the brass heats up, you will feel the insert begin to sink into the plastic. Keep your eye on the alignment from two different angles to ensure it is going in straight. As the insert approaches the surface of the print, slow down. You want the top of the insert to be just slightly below flush—about 0.1mm to 0.2mm—with the plastic surface. This ensures that the mating part of your enclosure will sit flat against the plastic rather than being held up by a protruding metal lip.

Once the insert is at the correct depth, quickly but smoothly withdraw the soldering iron. Do not wiggle the iron as you pull it out, as this can tilt the insert while the plastic is still liquid. Immediately after removing the iron, you can use a flat metal object (like the side of a pair of tweezers or a dedicated metal block) to press down on the insert for a second or two. This “quenches” the top layer of plastic and ensures the insert stays perfectly level. Wait at least a minute for the plastic to fully cool and re-harden before attempting to screw in a bolt. If you apply torque while the plastic is still warm, you will strip the insert right out of the hole.

Common Mistakes and Troubleshooting

One of the most frequent mistakes beginners make is using an iron that is far too hot. When the plastic gets too hot, it loses its viscosity and becomes watery, which can cause the insert to “sink” to the bottom of the hole too quickly or even fall through if the hole isn’t capped. Excessive heat also causes the plastic to degrade and lose its strength, resulting in a brittle connection that might fail later. If you see smoke or smell a burnt odor, turn your iron down. The process should be smooth and relatively odorless.

Another common issue is “plastic intrusion.” This happens when melted plastic flows up through the bottom of the insert and gets into the internal threads. This usually occurs because the hole in the 3D print was too small or the insert was pushed in too fast. If this happens, you can often clear the threads by running a steel tap through the insert once it has cooled, or by heating a sacrificial bolt and screwing it in to clear the path. However, it is much better to prevent this by ensuring your hole diameters are sized correctly according to the manufacturer’s datasheet.

Finally, avoid the temptation to “re-heat” an insert that was installed crookedly. While it is possible to fix a tilted insert by applying the iron again, you rarely get a perfect result the second time. The plastic around the insert has already been through a thermal cycle and often becomes less structurally sound. If alignment is critical, it is almost always better to reprint the part or use a jig to ensure it goes in right the first time. If an insert is spinning in its hole, it usually means the hole was too large; in a pinch, you can use a tiny drop of high-temperature epoxy to secure it, but this is a “hack” rather than a professional solution.

Safety and Practical Considerations

Working with hot soldering irons and melting plastic requires basic safety precautions. Always work in a well-ventilated area, as even “safe” plastics like PLA can release irritating fumes when overheated. Using a small desk fan to pull fumes away from your face is a simple and effective solution. Additionally, be mindful of the brass insert itself; once it is pressed into the plastic, it stays hot for a surprisingly long time. Avoid touching the insert or the area immediately surrounding it with your bare skin for several minutes after installation.

It is also important to consider the “pull-out” vs. “pull-through” force in your design. If your enclosure lid is held on by screws, the force of the tightened screw will be trying to pull the insert out of the hole. In high-stress applications, it is often better to design your part so that the insert is installed from the *back* side of the hole. This way, when you tighten the screw, you are pulling the flange of the insert against the solid plastic of the enclosure rather than relying solely on the friction of the knurling. This “pull-through” configuration is significantly stronger and is the preferred method for heavy-duty industrial enclosures.

• Standardize your hardware: Try to use M3 inserts for almost everything. It simplifies your tool requirements and allows you to buy in bulk.
• Keep it clean: If plastic gets on your iron tip, wipe it off immediately with a brass wire sponge to prevent it from carbonizing and staining your next print.
• Test on scraps: Before committing to a 20-hour print, print a small “test block” with various hole sizes to see which one works best for your specific brand of inserts and filament.
• Use a chamfer: Always include a 0.5mm chamfer at the top of your holes in CAD to help the insert self-center.

Conclusion: Elevating Your 3D Printing Projects

Incorporating heat-set threaded inserts into your 3D printing workflow is one of the most effective ways to bridge the gap between a “maker project” and a professional product. By moving away from plastic-threading screws and toward metal-on-metal connections, you create assemblies that are not only stronger but also far more functional in the long term. The ability to open an enclosure to swap a battery, update a component, or inspect a circuit without worrying about stripping the housing adds immense value to your work. While it requires a small investment in tools and a minor adjustment to your design habits, the result is a level of durability and polish that is well worth the effort.

As you move forward, start by adding M3 heat-set inserts to your next small project. Experiment with different wall thicknesses and hole diameters on test pieces to find the “sweet spot” for your specific printer and filament. Once you see how satisfying it is to bolt a lid onto a 3D printed case with the smooth, precise feel of machine threads, you likely won’t want to go back to self-tapping screws. The next step is to explore more advanced techniques, such as using jigs for perfect alignment or designing “pull-through” configurations for high-load mechanical parts, further expanding what you can achieve with desktop 3D printing.

You’ve spent weeks perfecting your latest electronics project. The code is bug-free, the sensors are calibrated, and the breadboard is a masterpiece of organized jumper wires. But as soon as you try to move it from your workbench to its intended location, a wire snags, a solder joint cracks, or dust begins to settle into the delicate components. This is the “naked PCB” dilemma that every maker faces. Without a proper housing, even the most brilliant engineering project remains fragile, unattractive, and difficult to mount. A custom enclosure is the bridge between a functional prototype and a finished product that you can actually use in the real world.

Designing and 3D printing your own electronics enclosures used to be a daunting task reserved for those with professional CAD experience. Today, however, the democratization of 3D printing and the availability of powerful, free design software have changed the game. Whether you are building a smart home sensor, a custom handheld gaming console, or a weather-sealed outdoor monitor, creating a bespoke housing allows you to optimize for space, accessibility, and aesthetics. This guide will walk you through the technical nuances of designing for 3D printing, ensuring your electronics fit perfectly every time while maintaining structural integrity and ease of assembly.

Establishing Precise Mechanical Dimensions

The foundation of any successful enclosure design is accurate measurement. If your dimensions are off by even half a millimeter, your USB ports won’t align, or your PCB will rattle inside the case. Before you even open your CAD software, you must create a detailed mechanical map of your components. Use a set of digital calipers to measure the overall length, width, and height of the PCB, but don’t stop there. You must also account for “protrusions,” such as capacitors, headers, and connectors, which often extend beyond the footprint of the board itself.

A common professional technique is to create or download a simplified 3D model of your electronics—often called a “dummy” or “proxy” model—and design the case around it. Many popular boards like the Raspberry Pi, Arduino, and ESP32 have high-quality STL or STEP files available on sites like GrabCAD. By importing these into your design environment, you can visually verify clearances and port alignments in real-time. Remember to include “tolerance” in your measurements; 3D printers are not perfect, and plastic tends to shrink slightly as it cools. Adding a 0.2mm to 0.4mm gap around the perimeter of the board ensures a comfortable fit without forcing the plastic.

Choosing the Right Design Paradigm: Shells and Snap-Fits

When it comes to the actual geometry of the box, you generally have two main approaches: the “two-part shell” or the “unibody with a lid.” The two-part shell, often split horizontally (clamshell) or vertically, is ideal for complex handheld devices where you need to access both sides of the PCB during assembly. The unibody approach, where the electronics slide into a five-sided box and are covered by a flat plate, is often more structurally sound and easier to waterproof. Your choice depends heavily on how you intend to mount the internal components and how often you need to access the “guts” of the device.

Fastening these pieces together is where many designs succeed or fail. While snap-fits—small plastic tabs that click into place—are elegant and require no extra hardware, they are notoriously difficult to get right on a 3D printer. FDM (Fused Deposition Modeling) prints have grain lines that make thin plastic tabs brittle. If you choose snap-fits, ensure the “print orientation” allows the layers to run the length of the tab for maximum strength. For most hobbyist projects, however, using M3 machine screws with threaded brass inserts is the gold standard. These inserts are pressed into the plastic with a soldering iron, providing a metal-on-metal connection that can be opened and closed hundreds of times without stripping the plastic.

Optimizing for Ventilation and Signal Integrity

Electronics generate heat, and plastic is a surprisingly effective insulator. If your project involves a voltage regulator, a motor driver, or a high-performance microcontroller, a sealed plastic box can quickly become a thermal trap. When designing your enclosure, incorporate ventilation slots or “grills.” Position these strategically to allow for natural convection: cool air enters through the bottom or sides, and warm air escapes through the top. If your project is high-power, you might even need to design a mounting point for a small 5V or 12V fan, ensuring there is a clear “airflow path” across the hottest components.

Another often-overlooked factor is signal integrity. While PLA and PETG are transparent to Wi-Fi and Bluetooth signals, the physical placement of antennas matters. If your microcontroller has an internal PCB antenna, placing it directly against a thick wall or near metal mounting hardware can significantly reduce range. Furthermore, if you are using sensors that interact with the environment—such as DHT22 temperature sensors or MQ-series gas sensors—you must design “isolation chambers” or external ports. A temperature sensor trapped inside a case with a warm processor will give you the temperature of the CPU, not the room. Designing internal baffles to separate the sensor from the heat source is a hallmark of a professional-grade enclosure.

Designing for Printability and Support Minimization

A design might look beautiful in CAD, but if it requires a mountain of support material to print, the surface finish will suffer, and material will be wasted. To design for “printability,” follow the 45-degree rule: most 3D printers can handle overhangs up to 45 degrees without needing supports. Instead of flat ceilings inside your case, consider using chamfers or fillets to transition from vertical walls to horizontal surfaces. If you must have a flat top, consider printing the enclosure in multiple parts that can be joined later, or design the lid as a separate flat piece that prints easily on the build plate.

Wall thickness is another critical variable. For small electronics, a wall thickness of 1.6mm to 2.4mm (roughly 4 to 6 perimeters with a 0.4mm nozzle) provides an excellent balance of strength and print speed. Thinner walls may feel flimsy or “translucent,” while excessively thick walls increase print time and the risk of warping. If you need extra rigidity, don’t just thicken the whole wall; instead, add internal “ribs” or gussets. These structural features provide stiffness where it’s needed most without adding unnecessary bulk to the entire design.

Selecting the Ideal Material for the Environment

The choice of filament is just as important as the design itself. PLA (Polylactic Acid) is the most common choice for beginners because it is easy to print and holds dimensions well. However, PLA has a low “glass transition temperature” (around 60°C). If you leave a PLA enclosure in a hot car or near a warm power supply, it may soften and deform. For most functional electronics projects, PETG (Polyethylene Terephthalate Glycol) is the superior choice. It offers higher heat resistance, better impact strength, and is chemically resistant to many household cleaners, all while being nearly as easy to print as PLA.

For more demanding applications, consider specialized materials. If your enclosure will be mounted outdoors, ASA (Acrylonitrile Styrene Acrylate) is preferred over ABS because it is highly UV-resistant and won’t turn brittle or yellow in the sun. If your project needs to be “ruggedized” to survive drops, TPU (Thermoplastic Polyurethane) can be used to print protective “bumpers” or even the entire case, though its flexibility makes mounting PCBs a challenge. Always match the material properties to the expected operating environment of your device to ensure a long service life.

Advanced Features: Buttons, Light Pipes, and External Interfaces

A truly professional enclosure doesn’t just hold the electronics; it provides an interface for the user. Instead of leaving a hole for an LED to peek through, design a “light pipe.” This is a small, separate component printed in transparent filament (or a piece of clear acrylic rod) that sits between the LED on the PCB and the outer wall of the case. It channels the light to the surface, creating a clean, flush indicator. Similarly, for buttons, you can design “compliant mechanisms”—flexible plastic arms integrated into the case wall that can be pressed to trigger a tactile switch on the board below.

External connectors are another area where custom design shines. Rather than relying on the PCB’s built-in ports, which might be awkwardly positioned, you can use “panel-mount” connectors. These are short extension cables for USB, HDMI, or power that screw directly into the wall of your enclosure. This protects the delicate ports on your microcontroller from the mechanical stress of repeated plugging and unplugging. When designing the cutouts for these ports, always include a small “recess” so that the head of the cable can seat fully into the port, preventing accidental disconnections.

Common Pitfalls and How to Avoid Them

One of the most frequent mistakes in enclosure design is forgetting about “wire management.” Even in a small box, jumper wires take up significant volume. If your design is too tight, you’ll find yourself crushing wires against the lid, which can lead to intermittent connections or short circuits. Always leave more vertical space than you think you need, or include dedicated “cable channels” to route wires away from heat sinks and moving parts. Additionally, ensure that your mounting bosses (the posts the PCB screws into) are thick enough to support a screw without splitting; a diameter of at least 6mm is usually safe for an M3 screw.

Another common issue is “warping,” especially with larger enclosures. As plastic cools, it contracts, which can cause the corners of your print to lift off the bed. To combat this, use “brims” or “mouse ears” in your slicer software to increase bed adhesion at the corners. Furthermore, avoid sharp 90-degree corners in your design wherever possible. Adding a small radius (fillet) to the external corners of your box not only makes it look more professional and feel better in the hand but also helps distribute the internal stresses of the cooling plastic, reducing the likelihood of a failed print.

Finalizing Your Design for the Real World

The journey from a breadboard to a professional, 3D-printed enclosure is a rewarding process that combines electrical engineering with mechanical design. By prioritizing accurate measurements, thermal management, and printability, you can transform a fragile collection of components into a durable, functional device. The key is to iterate. Don’t expect your first print to be perfect; instead, print small “test fit” sections of your design to verify port alignments and tolerances before committing to a 10-hour full-case print.

As you become more comfortable with these concepts, you can explore advanced post-processing techniques like sanding, painting, or using chemical vapors to smooth the surface of your prints. These steps can make a 3D-printed part indistinguishable from an injection-molded consumer product. The ultimate goal is to create a housing that doesn’t just protect your project, but enhances it. Start by modeling a simple box for your favorite development board today, and you’ll quickly find that the ability to design custom enclosures is one of the most valuable skills in a maker’s toolkit.
